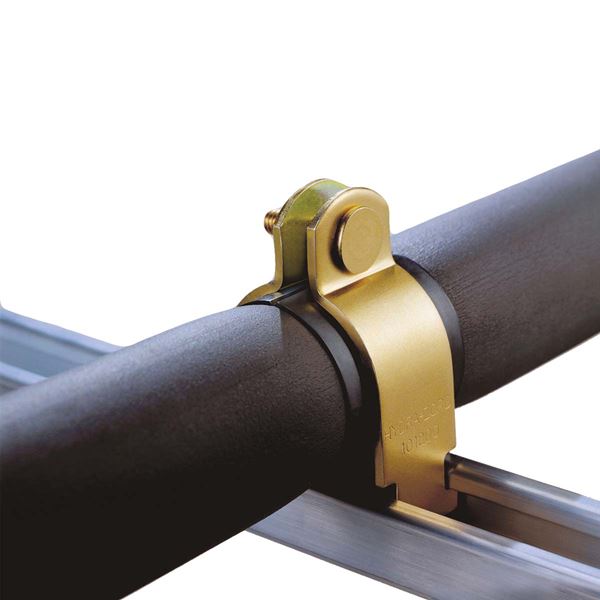

The strut mounted parts include the coupling, clamp halves with welded fastener and locknut. For use with elastomeric and fiberglass insulation.
Item # |
Wall Installation |
Pipe O.D. |
Overall Dimension |
Box Qty. |
Revit |
|---|---|---|---|---|---|
| HR 724062 | N/A 1/2 in | N/A 5/8 in | N/A 1.75 in | N/A 20 |
N/A
|
| HR 724087 | N/A 1/2 in | N/A 7/8 in | N/A 2.00 in | N/A 20 |
N/A
|
| HR 724112 | N/A 1/2 in | N/A 1 1/8 in | N/A 2.25 in | N/A 20 |
N/A
|
| HR 724137 | N/A 1/2 in | N/A 1 3/8 in | N/A 2.50 in | N/A 20 |
N/A
|
| HR 724162 | N/A 1/2 in | N/A 1 5/8 in | N/A 2.75 in | N/A 10 |
N/A
|
| HR 724212 | N/A 1/2 in | N/A 2 1/8 in | N/A 3.25 in | N/A 10 |
N/A
|
| HR 724262 | N/A 1/2 in | N/A 2 5/8 in | N/A 3.75 in | N/A 10 |
N/A
|
| HR 724312 | N/A 1/2 in | N/A 3 1/8 in | N/A 4.25 in | N/A 10 |
N/A
|
| HR 724412 | N/A 1/2 in | N/A 4 1/8 in | N/A 5.25 in | N/A 10 |
N/A
|
| HR 726062 | N/A 3/4 in | N/A 5/8 in | N/A 2.25 in | N/A 10 |
N/A
|
| HR 726087 | N/A 3/4 in | N/A 7/8 in | N/A 2.50 in | N/A 10 |
N/A
|
| HR 726112 | N/A 3/4 in | N/A 1 1/8 in | N/A 2.75 in | N/A 10 |
N/A
|
| HR 726137 | N/A 3/4 in | N/A 1 3/8 in | N/A 3.00 in | N/A 10 |
N/A
|
| HR 726162 | N/A 3/4 in | N/A 1 5/8 in | N/A 3.25 in | N/A 10 |
N/A
|
| HR 726212 | N/A 3/4 in | N/A 2 1/8 in | N/A 3.75 in | N/A 10 |
N/A
|
| HR 726262 | N/A 3/4 in | N/A 2 5/8 in | N/A 4.25 in | N/A 10 |
N/A
|
| HR 726312 | N/A 3/4 in | N/A 3 1/8 in | N/A 4.75 in | N/A 10 |
N/A
|
| HR 726362 | N/A 3/4 in | N/A 3 5/8 in | N/A 5.25 in | N/A 10 |
N/A
|
| HR 726412 | N/A 3/4 in | N/A 4 1/8 in | N/A 5.75 in | N/A 10 |
N/A
|
| HR 728062 | N/A 1 in | N/A 5/8 in | N/A 2.75 in | N/A 10 |
N/A
|
| HR 728087 | N/A 1 in | N/A 7/8 in | N/A 3.00 in | N/A 10 |
N/A
|
| HR 728112 | N/A 1 in | N/A 1 1/8 in | N/A 3.25 in | N/A 10 |
N/A
|
| HR 728137 | N/A 1 in | N/A 1 3/8 in | N/A 3.50 in | N/A 10 |
N/A
|
| HR 728162 | N/A 1 in | N/A 1 5/8 in | N/A 3.75 in | N/A 10 |
N/A
|
| HR 728212 | N/A 1 in | N/A 2 1/8 in | N/A 4.25 in | N/A 10 |
N/A
|
