HOLDRITE Plastic Strut Clamp Insulation Couplings On Reliance Worldwide Corporation

CAD (0) ▾

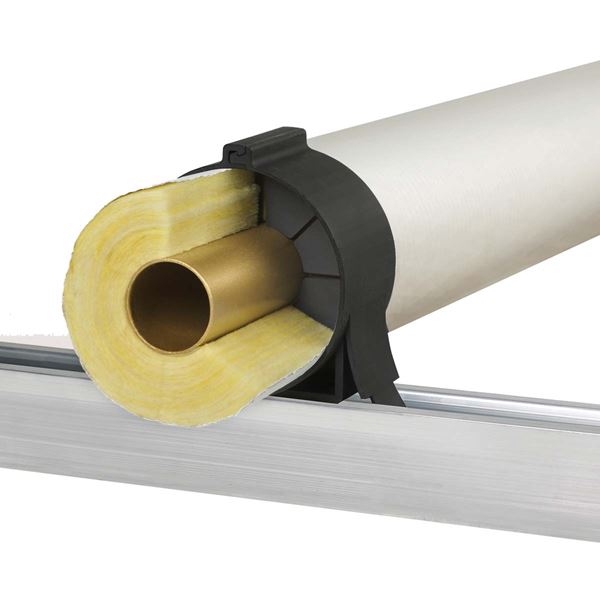

The coupling allows the installer to simply insert the coupling into channel and lock the top. No metal clamps needed. For use with elastomeric insulation or fiberglass.

1 - 12 of 12 | Results Per Page | View | Unit of Measure

Request Information Compare Items Add to CAD Cart

Item #	Wall Installation	Pipe O.D.	Overall Dimension	Box Qty.	Revit

HR 824062	N/A 1/2 in	N/A 5/8 in	N/A 1.75 in	N/A 20	N/A
HR 824087	N/A 1/2 in	N/A 7/8 in	N/A 2.00 in	N/A 20	N/A
HR 824112	N/A 1/2 in	N/A 1 1/8 in	N/A 2.25 in	N/A 20	N/A
HR 824137	N/A 1/2 in	N/A 1 3/8 in	N/A 2.50 in	N/A 20	N/A
HR 824162	N/A 1/2 in	N/A 1 5/8 in	N/A 2.75 in	N/A 10	N/A
HR 824212	N/A 1/2 in	N/A 2 1/8 in	N/A 3.25 in	N/A 10	N/A
HR 828087	N/A 1 in	N/A 7/8 in	N/A 3.00 in	N/A 10	N/A
HR 828112	N/A 1 in	N/A 1 1/8 in	N/A 3.25 in	N/A 10	N/A
HR 828137	N/A 1 in	N/A 1 3/8 in	N/A 3.50 in	N/A 10	N/A
HR 828162	N/A 1 in	N/A 1 5/8 in	N/A 3.75 in	N/A 10	N/A
HR 828212	N/A 1 in	N/A 2 1/8 in	N/A 4.25 in	N/A 10	N/A
HR 828262	N/A 1 in	N/A 2 5/8 in	N/A 4.75 in	N/A 10	N/A
